Range Rover geometry measurement in Dubai
Range Rover Wheel Alignment Dubai
Pulling, an off-centre steering wheel and uneven tire wear do not always mean the angles only need adjustment. We inspect tires, rims, steering and suspension first, then measure the vehicle and show the before and after result when adjustment is appropriate.
Alignment or another fault
The symptom decides what must be checked before the machine
Wheel alignment measures and adjusts geometry. It cannot repair a bent wheel, damaged tire, loose joint, worn bearing, shifted subframe or steering fault.
Quick answer
A Range Rover should receive a mechanical and tire pre-check before alignment. If looseness, impact damage, incorrect ride height or wheel runout is present, that issue should be addressed before the final geometry is set.
The vehicle pulls left or right
Compare tire pressure, tire construction and wear, road crown, brake drag, suspension condition and alignment measurements. Swapping or replacing tires may change the pull even when the geometry is within the required range.
The steering wheel is off centre
Confirm the vehicle travels straight, the steering wheel and rack are centred and there is no free play. An off-centre wheel can follow poor toe setting, shifted components, previous steering work or unequal tire influence.
One tire wears on an inner or outer edge
Measure tread across the full width and inspect joints, bushes, ride height and wheel position. Wear is historical evidence. A new alignment cannot restore tread that is already uneven or prove which earlier condition created it.
The vehicle vibrates at speed
Vibration is more commonly linked to tire balance, tire uniformity, wheel runout, impact damage or looseness than to alignment alone. Record the speed range and whether the vibration is in the steering wheel, seat or body.
The concern started after a pothole or collision
Inspect tires, rims, steering arms, suspension links, mounting points and body or subframe position. A machine can display the angles, but it cannot explain a large difference without a physical inspection.
Three angles describe different relationships
Toe, camber and caster should not be treated as one number
The exact targets and available adjustments depend on the vehicle. These diagrams explain the purpose of the measurements without inventing one universal specification.
Toe
Toe compares the direction the wheels point when viewed from above. Incorrect toe can affect steering-centre position, stability and directional tread wear. Toe should be set with the steering correctly centred.
Camber
Camber describes wheel lean when viewed from the front. A side-to-side difference can relate to geometry, ride height, bent parts or mounting position. Some applications offer limited direct adjustment.
Caster
Caster describes the steering-axis relationship when viewed from the side. It can influence return-to-centre and directional behaviour. A large difference may point to position or component concerns rather than a simple setting.
Mechanical inspection before measurement
Six checks that protect the alignment result
Tire specification, pressure and wear
Confirm the correct fitment and compare all four positions. A mismatched or damaged tire can create a pull that remains after the numbers are adjusted.
Wheel damage and runout
Inspect for bends, impact marks and bead concerns. A wheel that does not run true can cause vibration and inconsistent measurement.
Steering and suspension looseness
Check joints, bushes, arms, links, bearings and steering connections. Geometry cannot remain stable when a component moves under load.
Ride height and air suspension condition
The vehicle should be in the correct operating condition for measurement. A height fault, uneven stance or active warning may need diagnosis before alignment.
Brake drag and road-test behaviour
A dragging brake can create a directional complaint. The workshop should reproduce the symptom and note whether it changes during acceleration, coasting or braking.
Impact and previous repair history
Recent tire, rim, suspension, steering or body work can explain why the angles changed. Preserve that history before adjustments erase useful evidence.

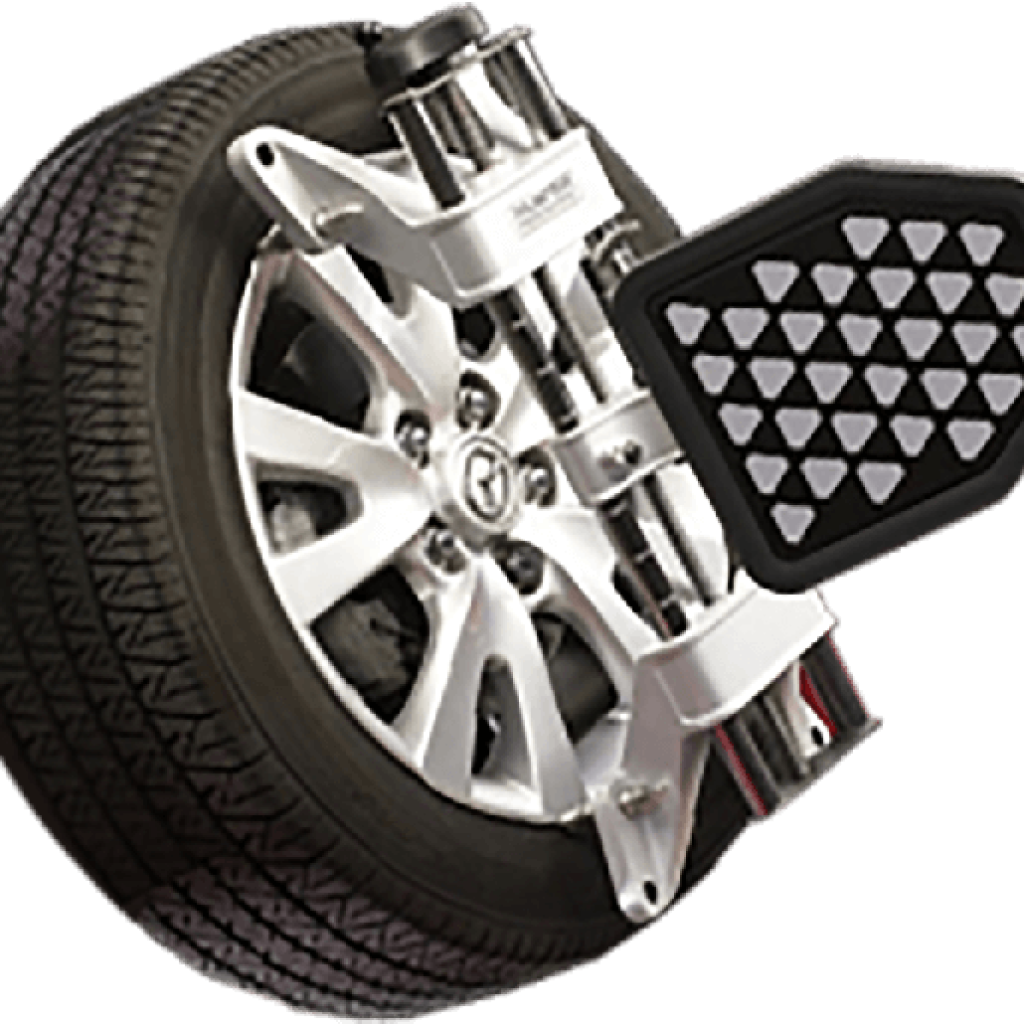

Measurement conditions matter
What the alignment machine can show and what it cannot
The equipment measures wheel relationships. The technician must still decide whether a value is adjustable, caused by another component or affected by the way the vehicle is sitting on the machine.
Before values
Show the starting toe, camber, caster or other available readings for the exact vehicle.
Side-to-side comparison
Compare differences with ride height, tire condition, component position and the reported symptom.
Available correction
Use the adjustment points provided for the application. Do not force a non-adjustable angle into range by moving unrelated parts.
After values and road test
Confirm the final report, steering-centre position and road behaviour after the vehicle settles.
A readable process with evidence at every stage
How Range Rover wheel alignment is completed
1. Confirm the owner complaint
Record pulling, steering position, tire wear, impact history, vibration speed and recent repairs. The road-test route should be suitable for reproducing the concern.
2. Inspect tires, wheels and mechanical parts
Check specification, pressure, wear, runout, bearings, joints, bushes, steering links, brakes and ride height. Repair decisions are made before geometry is changed.
3. Prepare and identify the vehicle
Use the exact vehicle information and the correct operating condition. Confirm steering position, load or preparation requirements that genuinely apply to that model.
4. Measure before adjustment
Capture the starting values and compare side-to-side differences. A large non-adjustable value can direct inspection toward bent or displaced components.
5. Adjust only supported angles
Set the available adjustments while keeping the steering correctly centred. Recheck values after tightening and after any movement that can change the reading.
6. Road test and review tire behaviour
Confirm straight-line behaviour, steering-centre position, return, warning status and the original complaint. Existing tire wear can still influence the result and should be explained.
The printed report should be understandable
What to look for in the before and after alignment sheet
Colour alone is not enough. The report should identify the exact vehicle, the measured values, which angles were adjusted, which were not adjustable and what physical finding explains any remaining difference.
A green screen does not prove every mechanical issue is solved
A vehicle can show acceptable static values and still have a tire pull, brake drag, worn component that moves under load or ride-height concern. The road test and physical inspection remain part of the result.
Common reasons an alignment will not hold
Correct the cause before repeatedly adjusting the same vehicle
Worn bushes or joints
Movement under braking, acceleration or cornering can change the wheel position after static measurement.
Bent wheel or damaged tire
Runout, belt or sidewall damage can create vibration and directional influence that alignment cannot remove.
Air-suspension or ride-height issue
Uneven or unstable height changes geometry and can make the result inconsistent.
Impact or shifted mounting point
A pothole, kerb or collision can bend an arm or move a subframe or body reference. Large differences need physical explanation.
Steering not centred during adjustment
Toe can be numerically acceptable while the steering wheel remains off centre if the rack and wheel were not held correctly.
Existing uneven tire wear
The alignment may be corrected but the old wear pattern can continue to influence noise, steering feel or pull.
Model and suspension configuration matter
Alignment preparation changes across Range Rover generations
Full-size Range Rover, Range Rover Sport, Evoque and Velar applications can use different suspension layouts, wheel packages, steering systems and ride-height controls. The correct vehicle should be selected from the VIN and current equipment rather than from the body shape alone.
Air-suspension vehicles
Warnings, uneven height or an unstable selected height should be resolved before the final geometry is trusted.
Large wheel and tire packages
Low-profile tires and impact history make rim runout and sidewall condition important parts of the pre-check.
Previous steering or body repair
Rack, subframe, suspension and collision work should be disclosed because it can change centring and mounting position.
Quotation depends on diagnosis and adjustment access
What changes the Range Rover wheel alignment quotation
The scope depends on the exact model, tire and wheel condition, ride height, steering and suspension findings, number of adjustable angles, seized or damaged hardware, previous collision work and whether parts must be repaired before the final measurement.
A useful quotation should separate inspection, measurement, adjustment and any mechanical repair. It should include a before and after report and explain whether the original symptom is expected to change immediately or whether existing tire wear can continue to affect the road feel.
No fixed result should be promised before the vehicle is inspected. A basic adjustment is different from a post-impact investigation, steering-component replacement or alignment after body and suspension repair.
Range Rover alignment questions
Answers before booking
Why does my Range Rover pull after alignment?
Tire construction or wear, pressure, road crown, brake drag, ride height, worn parts or an uncorrected geometry difference can still create a pull. Compare the report with a mechanical and tire inspection.
Does vibration mean the wheels need alignment?
Not usually by itself. Vibration often involves balance, tire uniformity, wheel runout, impact damage or looseness. Record the speed and location of the vibration for diagnosis.
Can alignment fix an off-centre steering wheel?
It can when toe and steering-centre position are the cause. The rack, steering wheel and vehicle path should be centred correctly rather than adjusting one side to hide another fault.
Should alignment be done after replacing suspension parts?
It may be required when the work can alter wheel position or geometry. The exact need depends on the component and procedure. Measure after the repair and confirm the vehicle condition.
Why is one angle not adjustable?
Some vehicle angles have limited or no direct adjustment. A value outside the target range can point to ride height, bent or displaced parts, mounting position or another physical condition.
Will alignment stop existing tire noise?
Correct geometry can prevent further abnormal wear, but an established wear pattern may continue to create noise or directional influence. The tire condition still needs its own decision.
What should I send before booking?
Send the VIN, tire photos, steering-wheel position, wear pattern, impact or repair history and a description of whether the vehicle pulls, vibrates or feels unstable.
Book Range Rover wheel alignment in Dubai
Inspect the tires, rims and mechanical parts before adjusting the angles
Send the VIN, tire-wear photos, steering-wheel position and any impact or suspension history. The workshop can then plan the correct mechanical pre-check, measurement and verification.
